Sliding Filament Theory

The sliding filament theory explains muscle contraction based on how muscle fibers (actin and myosin) slide against each other to generate tension in the overall muscle.

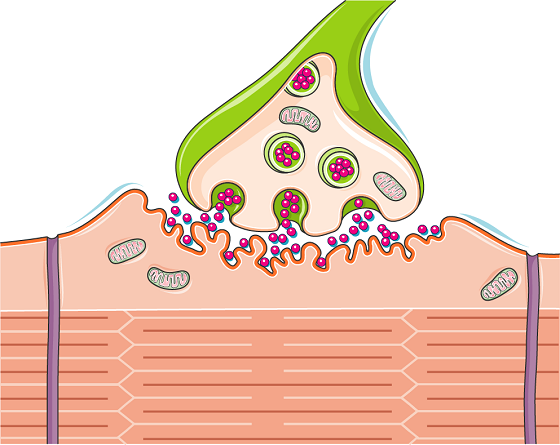

Step 1: A muscle contraction starts in the brain, where a signal is sent to the motor neuron (a).  The combination of the motor neuron and the skeletal muscle fibers make up a motor unit.

Color the motor neuron (a) yellow. checkbox
Vesicles that contain the neurotransmitter, acetylcholine. Color vesicles (b) gray checkbox.
Color the triangles that represent the acetylcholine (c) orange checkbox .
Acetylcholine reaches the receptors (d) Color the receptors brown checkbox .
The gap between the neuron and muscle fiber is the synapse (e). Color this area light green checkbox .
The impulse travels down membrane, or sarcolemma. Color the sarcolemma (f) dark green checkbox .

Step 2: The impulse travels moves into the transverse tubules where it causes calcium to be released from the sarcoplasmic reticulum.

Color the transverse tubule (g) light blue checkbox and the circles that represent calcium(h) dark blue checkbox.
The sarcoplasmic reticulum (i) is only partially pictured, color this structure pink checkbox .

Step 3: Calcium binds to the actin and causes it to change shape so that it can interact with myosin.

Color the actin myofilament (j) red checkbox

Step 4: The change in shape allows myosin heads to form cross-bridges between the actin and myosin.

Color the myosin filament (m) yellow checkbox.
Color the cross bridges and their heads (k) purple checkbox.

Step 5: Energy from ATP is used to create a "power stroke" between the two filaments. The actin filament  slides inward and shortens, or contracts, the whole muscle.

Color the ATP orange checkbox.

Questions:

1.  The motor unit consists of muscle fibers and a  _____________________________

2.  What neurotransmitter is needed to initiate a muscle contraction? _________________________

3.  What substance causes the actin to change shape? _______________________________

4.  How does myosin and actin interact with each other? _________________________________

5.  What substance provides the energy for muscle contraction?  ___________________________

7.   Where is calcium released from? ______________________________________________

8.   What is the gap between the neuron and muscle fiber called? ___________________________

9.  What are the two filaments found in muscles? _________________________________________

10.   Place the steps in order:

___  Cross bridges form
___ Signal travels down the motor neuron
___ Calcium released from sarcoplasm
___ ATP creates a power stroke, shortening actin filament
___  Actin changes shape
