Gene Linkage & Chromosome Maps

Thomas Hunt Morgan studied fruit flies and found that in some crosses, expected outcomes weren't happening. Further experiments confirmed that alleles located on the same chromosome are inherited together.

*Mendel's dihybrid cross AaBb x AaBb would not have yielded a 9:3:3:1 ratio if he had chosen alleles located on the same chromosomes.

A common cross used to demonstrate linkage groups is the cross of a heterozygote wild type vestigial wings/ black body with a recessive mutant.

The cross would look like this

vg+ vg bl+ bl x vg vg bl bl

It may be easier at this point to use the older notation for letters, where the cross would look like AaBb x aabb

There are two possible arrangements for the heterozygote (AaBb) in the above cross.

If the dominant alleles are on different chromosomes (Ab) then it is called TRANS
If the dominant alleles AB are on the same chromosome, it is called a CIS arrangement

Cross produces: 50% wild type / 50 % mutant

If no crossing over has occurred, the outcome will always be 1:1, however this is not what Thomas Hunt Morgan observed.

  Expected Observed
Wild Type 50 33
Mutant 50 33
Vestigial Wings, Wild 0 17
Wild, Black Body 0 17

Question: How would you explain these results?


Answer: The two offspring that did not look like either parent are called recombinants. They are a result of CROSS-OVER which occurred during meiosis, the alleles switch position.

Using this methodology, the chromosomes of the fruit fly were mapped. Each MAP UNIT represents how far apart the alleles are on the chromosome, the number is based on how often crossing over occurs.

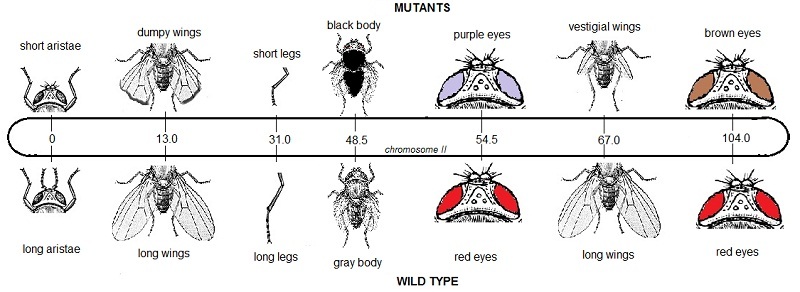

Chromosome 2 on Drosophila Melanogaster (fruit fly)

drosophila chromosome

Practice Questions

1. A dumpy winged (dd) fruit fly with long aristae (AA) is crossed with a long winged (Dd) short aristae (aa). Show the cross and the phenotypic proportions.



2. A fruit fly with short legs (ll) and vestigial wings (ww) is crossed with one that is heterozygous for both traits. Assuming the dominant alleles are on separate chromosomes, show the cross and the expected phenotypic proportions.



3. In fruit flies, red eyes is a dominant allele located on the X chromosome. The recessive condition results in white eyes. The tan body trait is also X-linked and is dominant to yellow bodies. A female who is heterozygous both traits with the dominant alleles located on the same chromosome is crossed with a white eyed, yellow bodied male. Show the cross and the phenotypic proportions (Don't forget these traits are X-linked!)



4.  Chromosome Map Problem

In pea plants, flower color and pollen shape are located on the same chromosome.    A plant with purple flowers and long pollen (AaBb) is crossed with one that is recessive for both traits (aabb).

The results are as follows:

results table

a) Are the chromosomes of the AaBb parent in the cis or trans position? Sketch a punnett square showing the expected offspring.


b) How far apart are the two alleles?
